Parts List Range G506

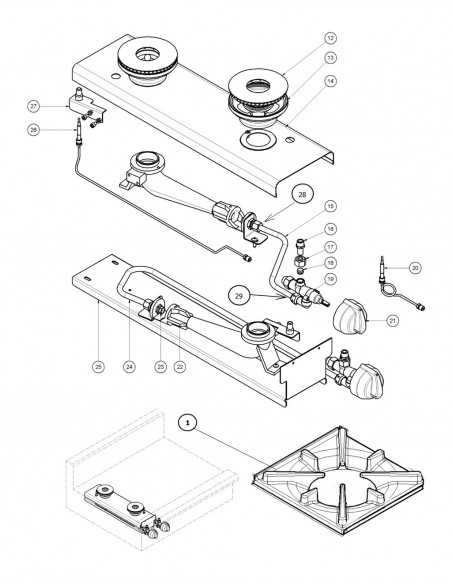

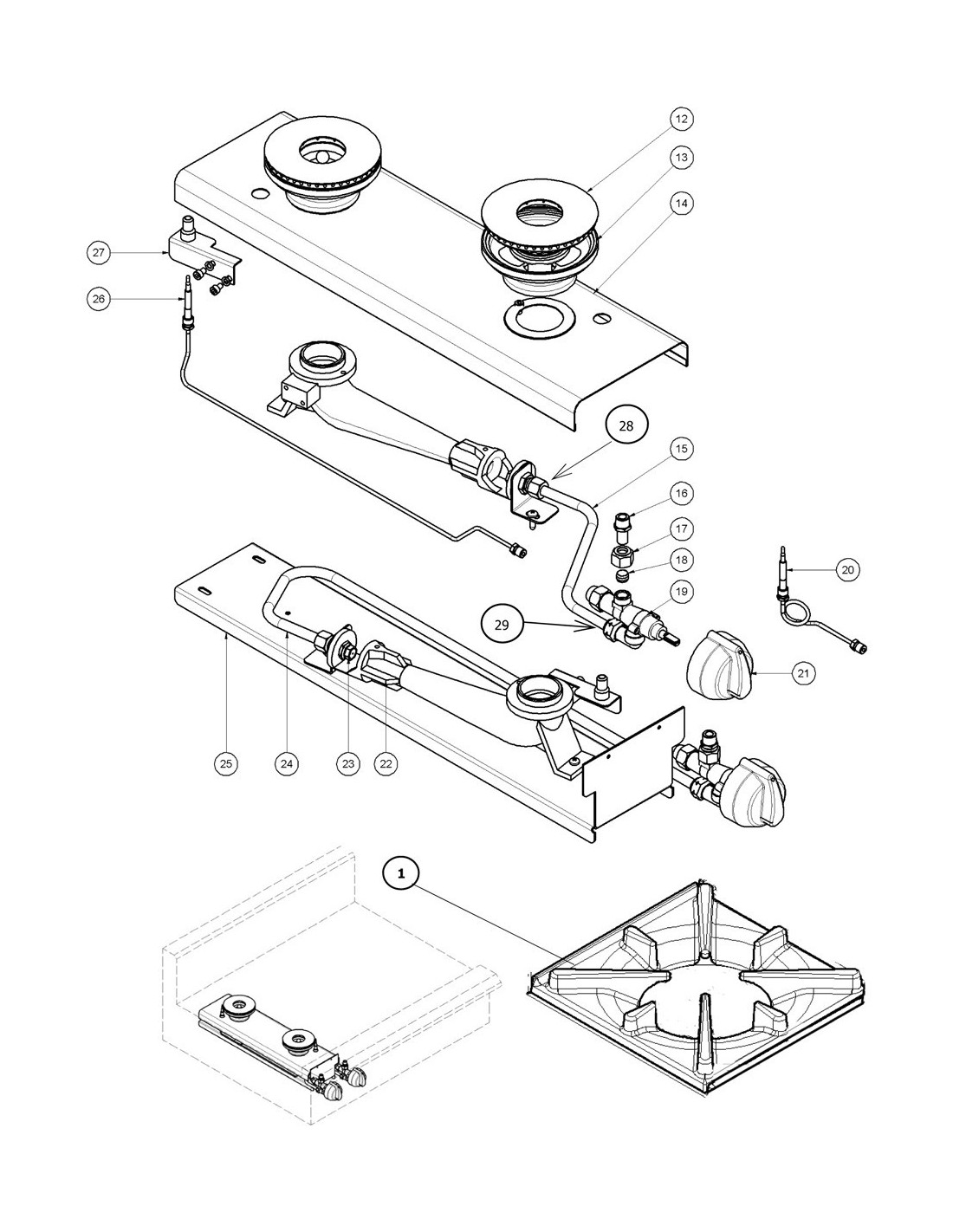

Cook Top Item Number Part Number Description

1 227014 POT STAND

12 227017 BURNER CAP

13 227018 BURNER BODY

14 227455 BURNER COVER PANEL STD

15 227457 REAR BURNER SUPPLY PIPE

16 17802 INLET SPIGOT 10MM

17 17804 NUT - 10mm STEEL

18 17803 OLIVE 10MM BRASS

19 227405 GAS VALVE 20S-B CW 3-8 ELBOW

19 18790 VALVE MAGNET

20 228167 THERMOCOUPLE 320mm

21 227379 KNOB BSEAL 8MM GAS STD / F

22 227019 BURNER VENTURI

23 30245 INJECTOR 2.45mm (NAT GAS)

23 30230 INJECTOR 2.30mm (UK NAT GAS)

23 30150 INJECTOR 1.50mm (LPG)

23 30140 INJECTOR 1.40mm (UK PROPANE)

23 30140 INJECTOR 1.40mm (BUTANE)

23 30450 INJECTOR 4.50mm (TOWN GAS)

24 227456 FRONT BURNER SUPPLY TUBE

25 227132 BURNER SUPPORT

26 228166 THERMOCOUPLE 600mm

27 234601 THEMOCOUPLE SUPPORT BRKT WA

28 227375 INJECTOR CONNECTOR ASSEMBLY(INCLUDES NUTS & OLIVE )

28 15152 NUT 3/8”

28 15153 OLIVE 3/8”

29 227560 NUT 3/8”

29 227559 OLIVE 3/8”

2 228710 OPEN BURNER MODULE KIT (F) 300mm SECTION – NON UK

2 230674 OPEN BURNER MODULE KIT (F) 300mm SECTION – UK ONLY

Oven Gas

Item Number Part Number Description


22 227185 POT STAND SUPPORT

23 227690 HOB - RANGE SUPPLY PIPE

24 227330 UNION BRASS CONICAL ½ X ¾ BSPT

25 227278 MANIFOLD 900MM

26 230309 TOP TRIM

27 228505 DOOR TOP SEAL

28 228703 EUROSIT 630 CONTROL KIT

28 22408 LOW FIRE SCREW 1.50mm (NAT GAS)

28 22407 LOW FIRE SCREW 0.95mm (LPG/PROPAN/BUTANE)

28 232312 LOW FIRE SCREW 2.50mm (TOWN GAS)

29 228693 PHIAL GUARD

30 228850 CAPILLARY BARCKET

31 227381 KNOB BSEAL 8MM 100-290°C

32 228246 CONTROL PANEL

33 228407 CONTROL PANEL GUIDE

34 227508 PIEZO - SIT

35 19407 HT CABLE

36 228457 BURNER SUPPLY PIPE GAS

37 32260 BURNER INJECTOR 2.6mm (NAT GAS)

37 32160 BURNER INJECTOR 1.6mm (LPG/PROPANE)

37 32145 BURNER INJECTOR 1.45mm (BUTANE)

37 32500 BURNER INJECTOR 5.00mm (TOWN GAS)

38 228767 OVEN BURNER

39 228458 PILOT SUPPLY TUBE

40 229778 BASE GAS STATIC 900

41 227850 LEG 150MM X Ø63.5

42 227852 LEG PLATE

43 228885 DOOR SIDE SEAL

44 228024 DOOR HINGE MOUNTING LH

45 228031 DOOR HINGE MOUNTING RH

46 229674 REAR ROLLER ASSEMBLY

47 229671 LEG RING PLATE THREADED

48 227104 BACK PANEL

49 228456 CONTROL SUPPLY PIPE

50 018691K PILOT BURNER KIT

50 26488 PILOT INJECTOR 0.35mm (NAT GAS)

50 19217 PILOT INJECTOR 0.23mm (LPG/PROPANE/BUTANE)

50 18067 PILOT INJECTOR 0.60mm(TOWN GAS)

51 20253 THERMOCOUPLE 1200MM

52 18744 ELECTRODE

53 228349 PILOT MOUTING BRACKET

5 228531 REGULATOR (Natural Gas /LPG Gas [Propane-Convertible) 3/4”BSP F/F
