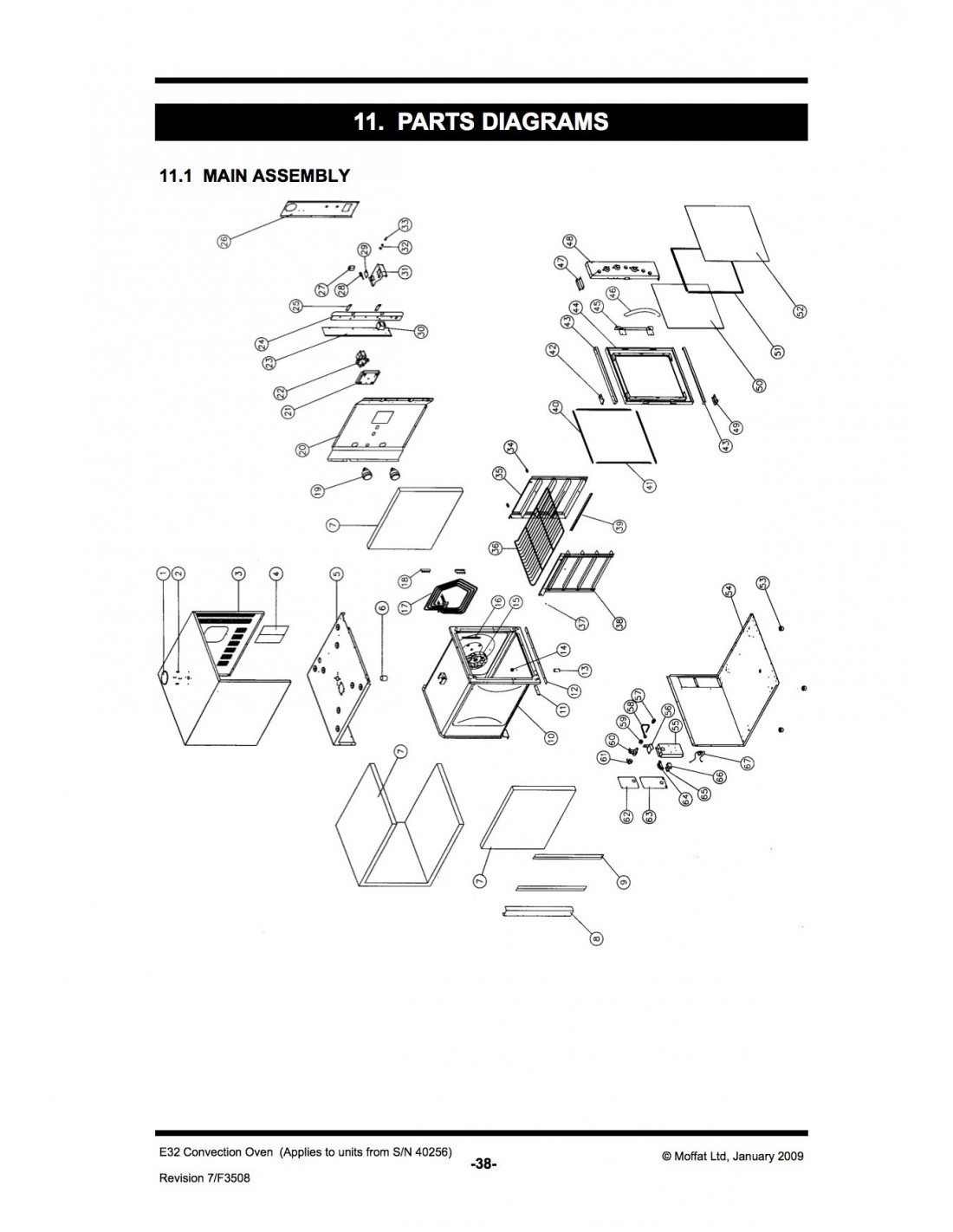

Parts List Convection Oven E32

Pos Part No. Description 1 016241 VENT HOOD PLATE 2 016245 HOOD SPACER 3 021448 WRAPPER 4 017872 INSPECTION PANEL 5 021549 TOP INSULATION PANEL 6 014954 VENT TUBE 7 090424 FIBREGLASS - 38mm 8 013986 REAR VERTICAL 9 013978 LH INSULATION PLATE 10 004727 OVEN - ENAMELLED 11 013951 HINGE PLATE BOTTOM 12 013987 INSULATOR OVEN 13 013941 DRAIN TUBE (to 12/98) 14 002247 DRAIN PLUG (to 12/98) 15 015597 FAN 16 013974 PHIAL GUARD 17 015360 ELEMENT ASSEMBLY 220V 015363 ELEMENT ASSEMBLY 240V 18 015581 ELEMENT BRACKET 19 013520 OVEN LIGHT ASSY 003434 SILK GASKET 013521 LAMP - 40W 003002 LIGHT GLASS 20 013967 SIDE INSULATION PANEL 21 013965 MOTOR MOUNTING PLATE 22 013431K MOTOR 23 021172 HEAT BLOCK PLATE 24 021467 CATCH PLATE 25 013893 DOOR SPRING CATCH 26 021173 FRONT VERTICAL 27 021534 RELAY 28 003004 MICROSWITCH 29 013977 INSULATOR 30 015966 CONTACTOR 022993 CONTACTOR MOUNTING BRACKET 022994 CONTACTOR UPGRADE KIT (TO S/N 47670) 31 021636 MICROSWITCH BRACKET 32 013610 DOOR BUSH 33 021637 MICROSWITCH BUTTON 34 014031 OVEN BAFFLE STUD 35 015656 FAN BAFFLE 36 015168 OVEN RACK 37 041405 SCREW 003397 SPACER 38 015575 SIDE RACK LH 39 015930 BAFFLE LOCATING BRACKET 40 021517 HORIZONTAL SEAL ASSEMBLY 021519 HORIZONTAL SEAL - 0.52M 41 021520 VERTICAL OVEN SEAL ASSEMBLY 021522 VERTICAL SEAL - 0.55M 42 020082 TOP HINGE ASSEMBLY 017905 BUSH 43 021532 DOOR TRIM 44 004725 DOOR INNER ENAMELLED 45 021466 DOOR HANDLE BRACKET 46 021468 HANDLE 47 021441 CONTROL PANEL MOUNTING BRACKET
